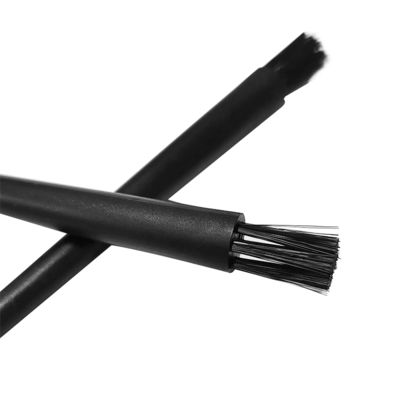

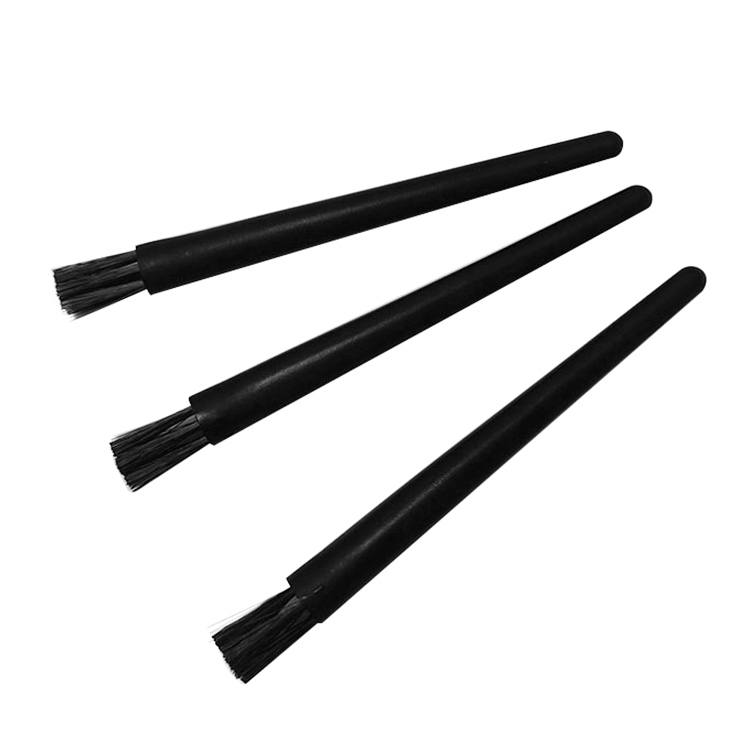

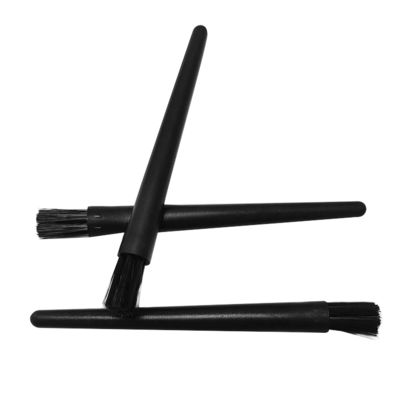

ESD Anti Static Brush Small Carbon Fiber Industrial Cleaning Anti-Static Brush

ESD Anti Static Brush Small Carbon Fiber Industrial Cleaning Anti-Static Brush

Anti static Industrial Pen Brush - Product Description

1. Product Definition and Overview
Anti static industrial pen brush is a professional tool designed specifically for precision electronic manufacturing, maintenance, and cleaning fields. It combines a fine brush head, ergonomic pen design, and critical anti-static function to safely and effectively remove tiny dust, debris, and pollutants from precision components such as circuit boards, chips, and connectors, without causing damage to sensitive components due to electrostatic discharge (ESD).
2. Core Features

Anti static performance:

This is its most important characteristic. The bristles and handle are usually made of special anti-static materials, such as conductive fibers or carbon fiber bristles, as well as anti-static plastic handles with added carbon powder.
They can safely guide and dissipate static charges that may be generated during the cleaning process, preventing static electricity from accumulating and releasing onto sensitive electronic components, thereby avoiding potential "soft damage" or direct breakdown.
Precision pen shaped design:
It resembles a pen in appearance and has a slender brush handle, providing excellent maneuverability, stability, and flexibility.
Users can precisely control the brush head like holding a pen, easily touching narrow gaps, dense pins (such as under BGA chips), and tiny components.

High quality bristles:

Brushes are usually very soft, tough, and not easily shed. Common materials include:
Conductive nylon bristles: possessing both anti-static and wear-resistant properties.
Carbon fiber bristles: have excellent conductivity, high strength, and chemical resistance.
High quality animal hair (such as mountain wool): Natural and soft, with good anti-static effect, but durability may be slightly inferior.
The bristles are arranged tightly and usually have a circular or conical shape to meet different cleaning needs.

Durability and reliability:

Specially designed for industrial environments, capable of withstanding frequent use. The bristles are firmly fixed in the brush handle, not easy to loosen or fall off, avoiding secondary pollution.

Main application areas

This brush is an essential tool for the following industries and scenarios:
Electronic manufacturing industry: Clean PCB circuit boards before and after SMT mounting and soldering.
Semiconductor and chip packaging testing: clean chip packaging bodies, test sockets, and precision interfaces.
Aerospace and Defense Electronics: Used for maintaining and cleaning highly reliable aviation electronic equipment.
Medical equipment maintenance: Clean the electronic modules inside precision medical instruments.
Laboratories and research institutions: used in the maintenance of precision equipment such as optical instruments and sensors.
Data recovery and maintenance: Clean extremely precise components such as hard disk discs and magnetic heads.

Summary of Core Advantages

Safe and Non Destructive: Effectively protects expensive ESD sensitive components from electrostatic damage, improving product yield and reliability.
Efficient cleaning: The pen shaped design allows operators to accurately and easily remove pollutants from hard to reach areas.
Improving efficiency: Fine cleaning ability can reduce malfunctions caused by dust and improve production and maintenance efficiency.

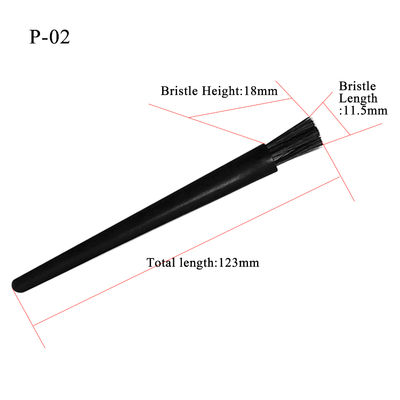

Specifications:

Picture	Part Number	Rows and Bristles	Description	Total length (mm)	Bristle Width (mm)	Bristle Height (mm)
	SS-01	1 row 2 bristles bundles	ESD Flat Brush / X-Thick / Small	143	15	15mm
	SS-02	1 row 3 bristles bundles	ESD Flat Brush / X-Thick / Medium	150	23	15mm
	SS-03	1 row 6 bristles bundles	ESD Flat Brush / X-Thick / Large	160	44	25mm
	S-01	1 row 3 bristles bundles	ESD Flat Brush / Thick / Small	155	23	30mm
	S-02	1 row 6 bristles bundles	ESD Flat Brush / Thick / Medium	171	44	40mm
	S-03	1 row 8 bristles bundles	ESD Flat Brush / Thick / Large	168	58	40mm
	S-01-M	1 row 7 bristles bundles	ESD Flat Brush / Small	143	39	25mm
	S-02-M	1 row 9 bristles bundles	ESD Flat Brush / Medium	143	48	25mm
	S-03-M	1 row 12 bristles bundles	ESD Flat Brush / Large	171	62	25mm
